BAUM Floor Model Folder Accessories

Floor Model Folder Accessories





baum-gatefold-attachment-combined



Gatefold Attachment

The BAUM Gatefold Attachment increases versatility and profitability.  Can be mounted in the parallel or 8-page folders.  The gatefold unit is designed with a precision solid-state timing control for ease of operation and quick job changeovers.



BAUM Jam Detector

Jam Detector

To detect paper jams as they occur at the end of a folding station, automatically stopping the folder.  A diagnostic message will appear on the BAUM 2020 operator panel when a jam is detected.

Remote Control

Enables the operator to control sheet feeding and folder drive from the delivery.  It also provides a portable control to assist setup for perfing, scoring and slitting, and for sending test sheets when setting fold plates.

Static Reducer

Consists of two static bars and a power unit (115V / 60 Hz).  Neutralizes the electric charges by creating an ionization field around the two bars.





BAUM Microperf

Microperf

Microperf is a special, very fine perforation that tears clean when pulled apart.  This perforation is used for stocks that need perforations and must be fed again through copiers and printers.



BAUM Segmented Folding Rollers

Segmented Folding Rollers

A core shaft and precision segments to provide the ability to move the segments to create open areas for glue to travel to keep the glue from wiping off onto the rollers.  Also used for creating open areas for application where tip on cards and other items may not need to contact the folding rollers.  The #1 roller is different from the other roller dues to the fact that the main encoder must be mounted on the end.



BAUM Exit Total Count Sensor

Exit Total Count Sensor

Mounts at the exit area of the last folder in the setup.  Provides a second count to compare to the first count of the sensor reading at the pile feeder count.  Also provides an added bonus of serving as a ham detector if the sheet stays under the sensor to long.



Exit Batch Count Kicker Kit

Mounts to the exit end of the last folder in the setup.  A metal plate is triggered by a solenoid to “Kick” the sheet as it passes the exit area to turn it.  This provides a marker of the batch.



Independent Powerbox Full Features

This power box provides the capability to operate 8-page and 16-page right angle folders independently from the parallel 1st station.  The box includes the capability to connect both the 8 and 16 page and operate at the same time, 2-tiered rollaway delivery, hand on delivery, remote control, VDS delivery, and BAUM presser stacker deliveries.  It includes an on button, E-stop and overload indicator light.  The box is mounted in the field.



Independent Powerbox Limited Features

This control box can power an 8-page or 16-page independently without the need for the 1st station parallel folder.  You can also power an 8-page and 16-page together.  The box includes plugs for a hang-on stacker and a gatefold control.  It also has a power an E-Stop button.  It mounts to the crosscarrier of the 8 or 16 page folder using existing holes in the crosscarrier rails that match the holes in the box.



Center Trim Kits

BAUM offers a wide selection of center trim kits.  BAUM has center trim kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts.  The model of folder determines which diameter slitter shaft is used.  The width of the strip to be removed needs to be determined before ordering the kit.



Edge Trim Kits

BAUM offers edge trim kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts.  The model of folder determines which diameter slitter shaft is used.  The kits include the edge stripper that deflect the waster to the floor when trimming.

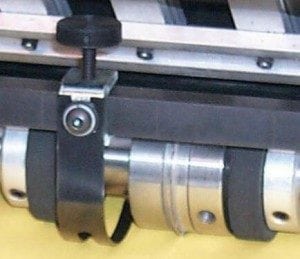

BAUM Perforating Kits

Perforating Kits

BAUM offers a wide selection of perforating kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts.  The model of folder determines which diameter slitter shaft is used.  The perf kit selection includes very coarse to very fine perforations per inch capability.



BAUM Scoring Kits

Scoring Kits

BAUM offers a wide selection of scoring kits for 7/8 inch, 1-1/8 inch and 35 mm diameter slitter shafts.  The model of folder determines which diameter slitter shaft is used.  BAUM has developed many different scoring methods to choose from.
