BAUM 20 IPF Independent Pile Feeder
Independent Pile Feeder for Multiple Applications

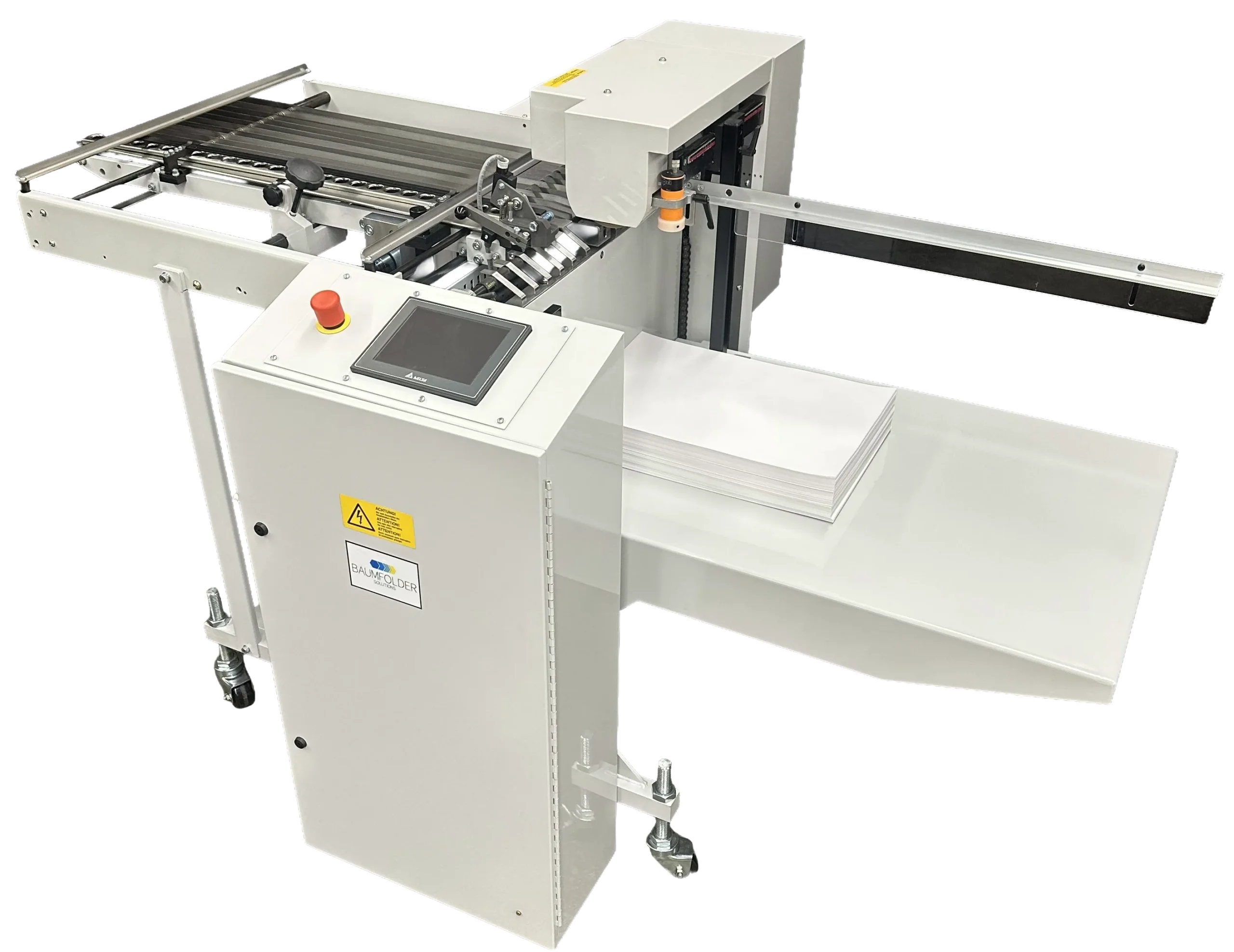

The BAUM 20 IPF Independent Pile Feeder is a heavy-duty, mobile feeder designed to load up to 25 inches of material. With a precision register table and a state-of-the-art control system, it is designed to work seamlessly with a variety of third-party devices. The exit pass line height is adjustable from 36.83 in to 42.83 in, allowing it to match up with devices like UV coaters, die cutters, laminators, digital print engines, inkjet bases, and mailing tables.
Watch the Baum 1620PFF 1st & 2nd with Stacker.
Technical Specifications
- Maximum Sheet Size: 20.5 x 33 in. (optional extension)
- Minimum Sheet Size: 4 x 6 in.
- Speed: 0–8,200 inches/min.
- Adjustable Sheet Gap: 0.2 in. to 98 in.
- Pile Capacity: Up to 25 in. of material
- Exit Pass Line Height: Adjustable from 36.83 in. to 42.83 in.
- Warranty: 3-year or 6,000-hour warranty on parts
- Electrical: 208V / 3 PH / 60 Hz, optional single phase
Key Features
- Heavy-duty mobile design with locking casters
- Side blow kit standard for increased air distribution
- Patented dual front blow bar system
- Registration table with standard sheet guide
- Touchscreen control panel with color pictographs
- BAUM ifold tutorial standard with pictographs
- Built-in diagnostic messages for errors and production productivity
- Digital sheet gap control for consistent sheet separation
- Non-contact pile height sensor to help eliminate sheet marking
- Built-in batch counter with variable batch settings
- Built-in total counters for current job and lifetime production
- Double sheet detector with feeder stop and diagnostic error display
- Optional urethane suction wheel for high-gloss paper or plastic-coated stocks
- Optional height adjustment
- Optional electrical communication
- Made in the USA with a robust design backed by over 100 years of folder manufacturing expertise
