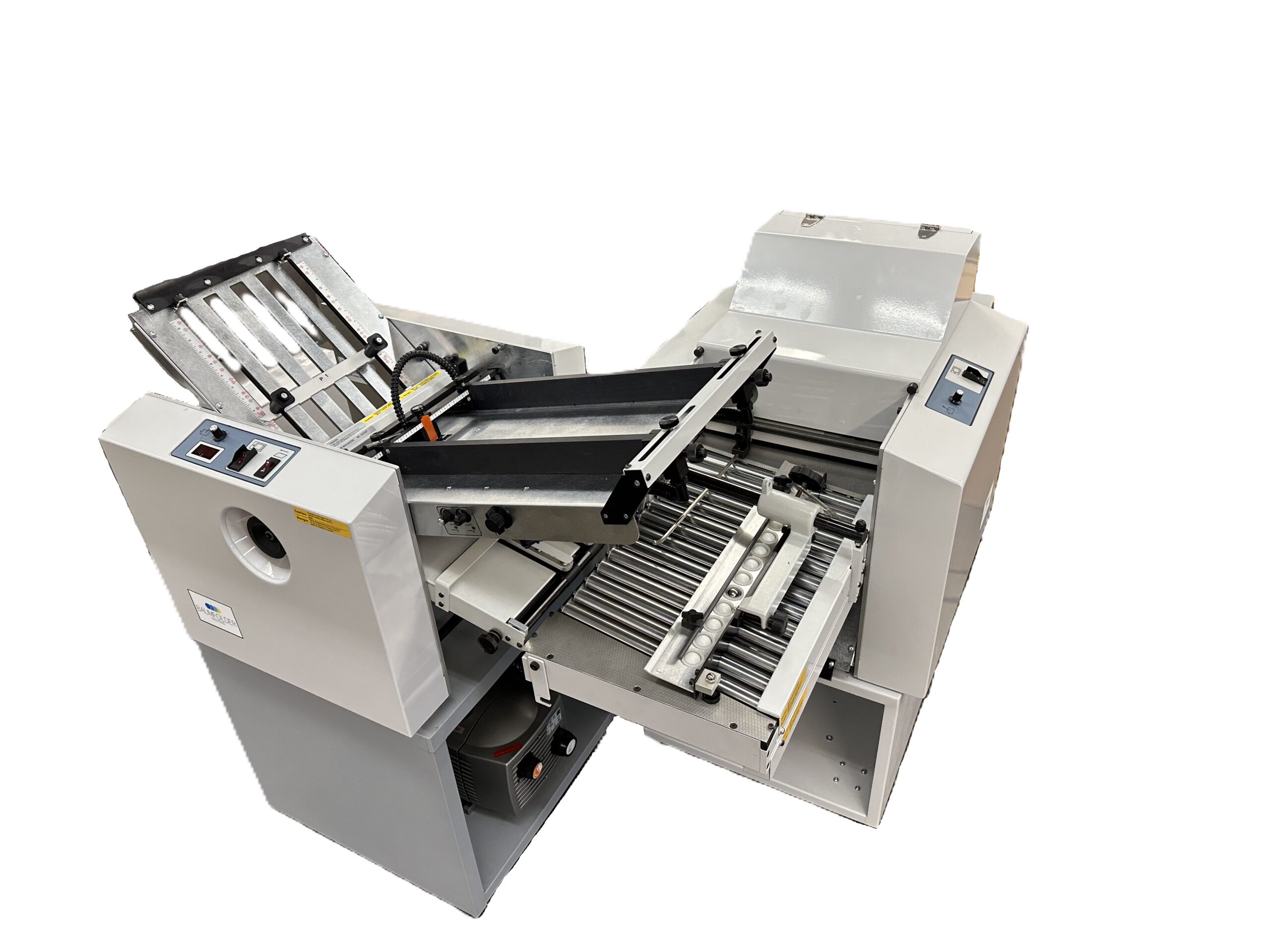

BAUM 714XLT Gluing Systems
Compact Folding & Gluing for Self-Mailers

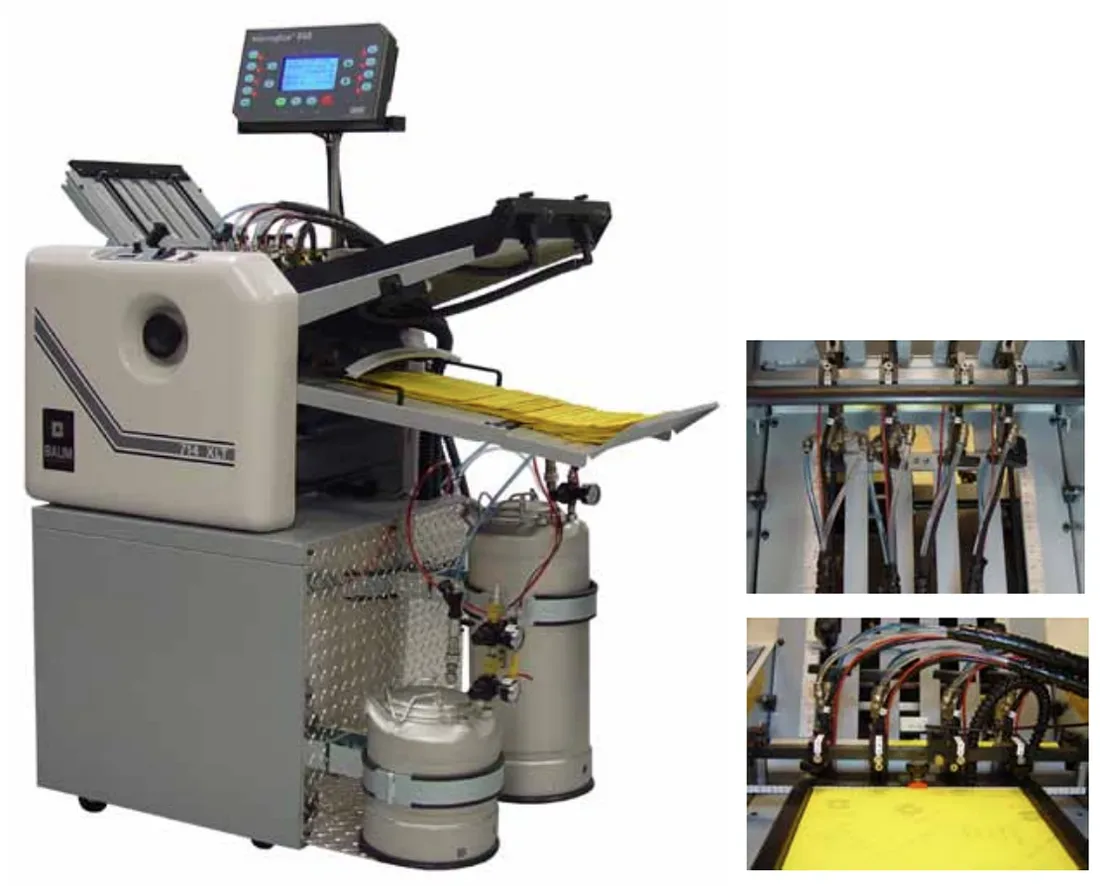

These complete folder/gluer machines combine the durable BAUM 714XLT Ultrafold air/vacuum feed folder with the easy-to-use GMS Microglue control and glue head system. Designed for affordability and efficiency, these systems require significantly less floor space than traditional self-mailer solutions while delivering professional results.
A standout feature is the capability to create “Z” and double-parallel self-mailers in a single pass with glue on three sides and perforations on two parallel ends. Four models are available to match your security and imposition requirements.
Technical Specifications
- Maximum Sheet Size: 14 in W x 20 in L (35.56 x 50.80 cm)
- Minimum Sheet Size: 3 in W x 5 in L (7.62 x 12.7 cm)
- Maximum paper weight: 65 lb cover
- Maximum side fold – #1 or #2 plate: 13.5″ (34.3 cm)
- Minimum size fold: 2.25″ (5.7 cm)
Key Features
- 4 models
- 3 segmented urethane folding rollers for all idler rollers
- 2 lines of perforating tooling
- 10 perforating blades, 64-tooth
- 8 pullout tire assemblies for the exit shafts
- Mobile cart to enclosed folder air/vacuum pump, and mount glue tanks
- Pre-assembled glue system with minimal installation time
- GMS controller with mounting post
- Easy purge system to clean valves
- Gear-driven folding rollers
- Total sheet counter
- Can be used to create self-mailers and or regular non-glued folds
- Available in either 110/1/60Hz or 220/1/50Hz electrical configuration
- Loading and unloading at the same end of the folder
- Rack and pinion gearing side guides on the feed table
